Mauch 085: 4-14S Backup BEC for Pixhawk 2

Mauch 085: 4-14S Backup BEC for Pixhawk 2

$43.83

The 4-14S Backup BEC for Pixhawk 2 is intended to be used as a secondary power supply in case the main power supply fails. The use of this backup BEC provides the highest level of power supply safety for your Pixhawk 2.1.

The Mauch HYB-BEC power supply for 4S-14S LiPo batteries provides cleaner power to the flight controller and on-board devices, and helps prevent crashes related to power wire failure or power module damage from voltage spikes thanks to wire redundancy and extra circuit protection.

  • Optimized design for Pixhawk 2.1 flight controller.
  • Outputs slightly higher voltage to ensure Pixhawk 2.1 selects the BEC as its power source. (PWM rail power sources ignored)
  • Low Drop Out regulator rejects ripple to protect motor PWM signals and vehicle wireless links (telemetry, video…)
  • High quality Texas Instruments and Linear Technology components provide outstanding stable power.
  • Input and output protected by high quality Panasonic FC / FM capacitors.
  • Circuit only gets warm during operation (LDO only 340mV dropout voltage).
  • Redundant positive and negative wires (two each) to improve safety and reduce resistance.

Specifications

  • Input: 4-14S LiPo (max. 60V).
  • Output 5.3V / 3A -> /- 0.05V.

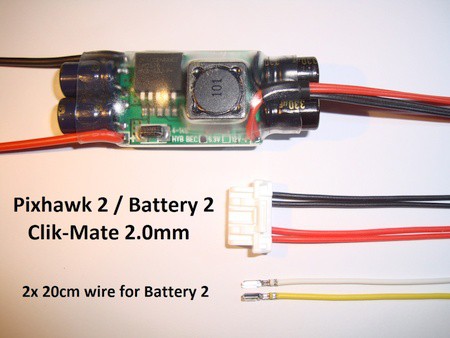

  • 20cm output cable with Molex / 6p / Clik-Mate 2.0mm. (To connect to Pixhawk 2 / Battery 2)
  • 2x 20cm spare wires with Clik-Mate 2.0mm crimp, for Battery 2 current and voltage sensing.
  • Size: 54mm x 21mm x 14mm.
  • Weight: 17g with cables and shrinking tube.
Please review the Mauch warranty for returns and replacements.

In stock

Quantity

Description

Recommended configuration with 4-14S Backup BEC for Pixhawk 2



[content_band style=”color: #333;” bg_color=”#efefef” border=”all” inner_container=”true”]

[custom_headline style=”margin-top: 0;” level=”h4″ looks_like=”h3″]Very low output voltage noise[/custom_headline]

[x_gap size=”1.313em”]

[x_block_grid type=”two-up”]

[block_grid_item]
skyrc-4-14s-bec
Output of an SkyRC 4-14S BEC with 12S LiPo as power supply and 1.5A load (very noisy)
[/block_grid_item]

[block_grid_item]
hvb-bec-4-14s-1
Output of the HYB-BEC 4-14S with with the same power supply and load (very low noise)
[/block_grid_item]
[/x_block_grid]

The device is capable of supplying 3A of output current with a dropout voltage of only 340mV. In addition to fast transient response, the LT1764A has very low output voltage noise which makes the device ideal for sensitive RF supply applications.

[/content_band]

Additional information

Weight 0.9 oz
Dimensions 4 × 4 × 1 in
