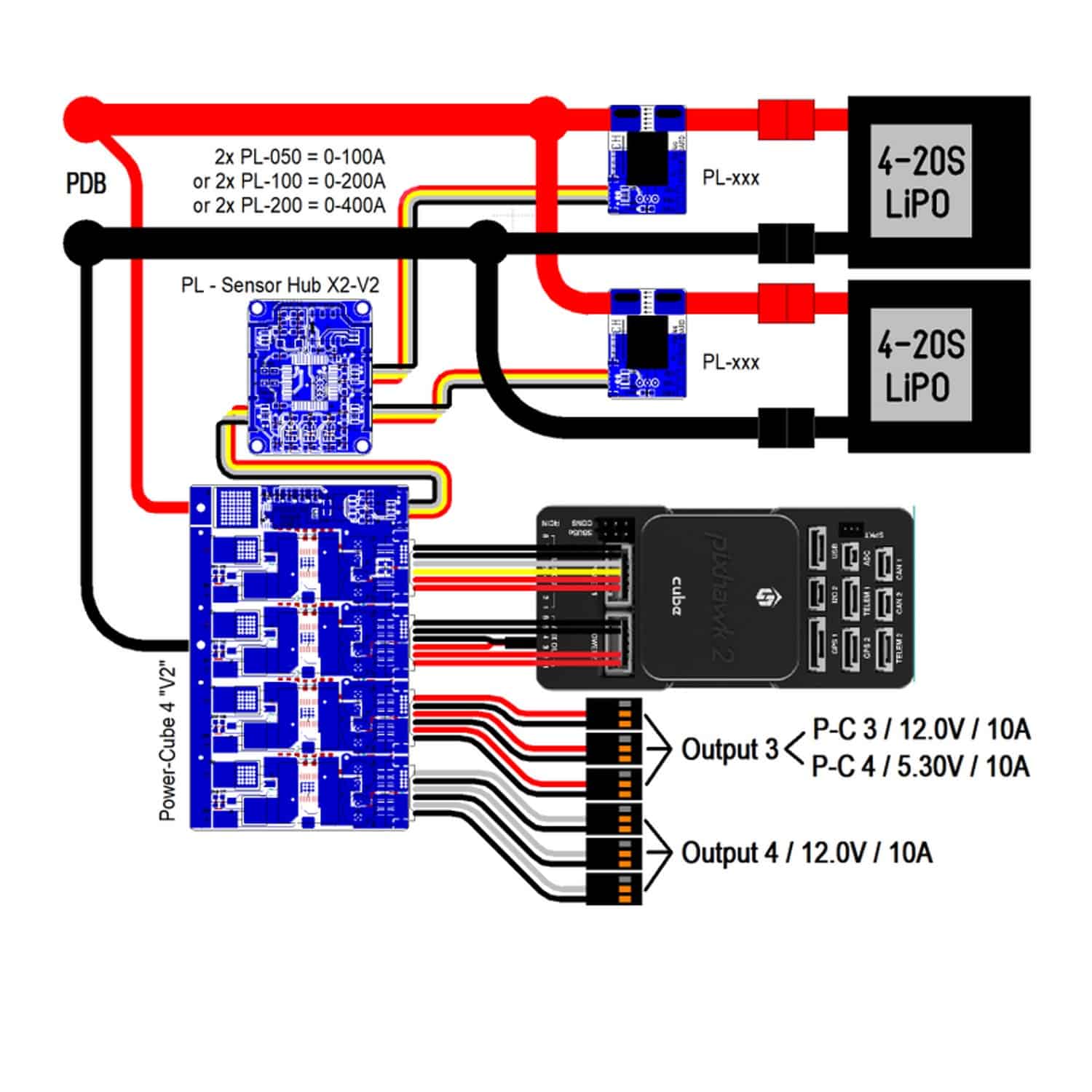

Sensor boards
1 Sensor boards
Measures currents up to 200A and voltages up to 14S (max. 60V) with solder bridge open and up to 7S (max. 30V) with solder bridge closed
What's included:
- 1x 200A current and voltage measurement sensor, based on Allegro Hall Sensor ACS758-200U, 2x 15cm 8AWG wires (red), Molex CLIK-Mate 1.25mm 4p connector
- 1x CFK enclosure
Does not include sensor cable (sensor cable supplied with the BEC)
If you want to use your own BEC (4.95-5.05V), also order a 040: Sensor cable
Dimensions and weight:
- 27.5 x 19.5 x 10.5mm / 39g without enclosure
- 43.5 x 23.0 x 15mm / 44g with enclosure
Power supply
3 Power supply
Input: 4-14S LiPo (60V max)
Outputs:
- POWER1: 5.3V @ 10A
- POWER2: 5.3V @ 10A
- "12.0V": 12.0V @ 10A
Click here to customize POWER2 and "12.0V" outputs (can be between 3.3V and 12.0V)
Lead-time for customized parts is approximately 4 weeks
What's included:
- 1x Power-Cube 3 V3 with CFK enclosure and fan
- 1x 040: sensor cable
Molex CLIK-Mate 1.25mm 4p on both ends / L = 150mm
- 1x 060: power cable for Pixhawk 2.1
Molex CLIK-Mate 2.0mm 6p on both ends / L = 200mm
- 1x 061: backup power cable for Pixhawk 2.1
Molex CLIK-Mate 2.0mm 6p to Molex CLIK-Mate 2.0mm 6p + 1x JR servo / L = 200mm
- 1x 063: 12.0V output cable
Molex CLIK-Mate 2.0mm 6p to 3x JR servo / L = 200mm
Delivery without 059: Power-Cube V3 Switch. Please order separately if required.
Dimensions and weight:
- 84 x 58 x 24mm / 86g with enclosure and fan
- Cooling fan size: 40 x 40 x 6mm
Important operating recommendations:
- Only use high quality anti-spark plugs.
- Never use a PSU.
- Don't use the power supply on high inductive loads, such as DC motors
(max output to power brushed or brushless DC motors is 5A).
- Input must be at least 3V higher than output!
Power switch (optional)
4 Power switch (optional)
Connects to any Power-Cube V3 or PDB and allows manual power on/off (current consumption when "off" is minimal). It isn't just a switch: there's a small PCB inside with current control mode. The 3D printed mount can be removed.
What's included:
- 1x Power-Switch with 200mm connection cable
- 1x ABS switch mount
- 2x M3x10 mounting screws and nuts
- 1x spare Molex CLIK-Mate 1.25mm 6p housing
Additional power cable (optional)
5 Additional power cable (optional)
The Power-Cube comes with a power cable for the Pixhawk 2.1. If connecting to a different flight controller, add the necessary cable from the list below.
Additional backup cable (optional)
6 Additional backup cable (optional)
The Power-Cube comes with a backup cable for the Pixhawk 2.1. If connecting to a different flight controller, add the necessary cable from the list below.
